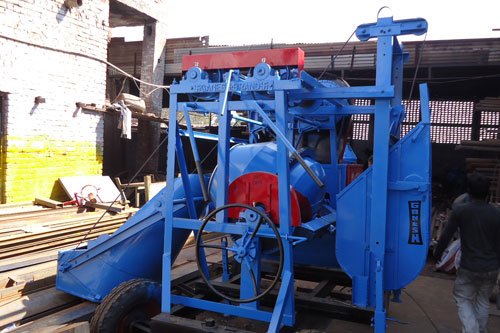

Concrete Mixer Machine with Hopper and Lift

Understanding the needs and of the various industrial sites we are offering a high range of concrete mixer machine lift with mechanical hooper. These machines are widely valued and appreciated among different user all across the market for their compact design, sturdy construction,low maintenance and ideal mixing of material. Model No. 675A.....



Technical Specification

Model No. PI 675 A
Capacity Unmixed : 10 Cft. Mixed: 7 Cft.
Prime Mover 10 Hp Diesel Engine/ Electric Motor
Lift And Bucket Made Of 3.5mm Heavy Sheet
Drum Speed 18/20 Rpm
Wheels  Pneumatic Tyre With Steel Hub & Bearing System, And Pressed Steel Plate Rims â€" 4 No’s
Handi Yoke 100 X 50 X 5 Mm C Section M.S. Channel,  Bearing System
Chassis Heavy Duty M.S. 125 X 65 X 6 Mm Channel Chassis
Drive V-Belt (Branded Isi Mark C Section)
Mixing Drum Heavy Duty  M.S. 12 Mm Plate  Lower Drum, 4  Mm  Upper
Mixing Blade M.S. Blades For Efficient Mixing
Drum Type Tilting
Engine Cabin 16 G (1.6 Mm) Thick
Weight 2300 Kg Approx.
Hopper Lifting Mechanical Operated
Lift Operation Mechanical Type
