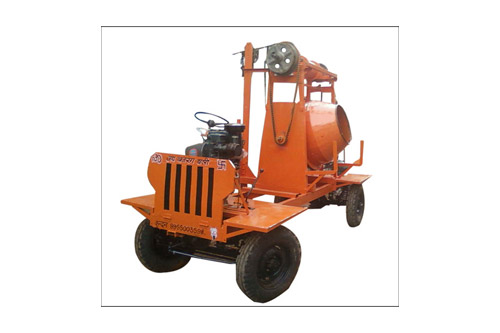

Concrete Mixer With Hydraulic Hopper

Understanding the needs and of the various industrial sites we are offering a high range of Concrete Mixer Machine With Hydraulic Hopper & Lift. These machines are widely valued and appreciated among different user all across the market for their compact design, sturdy construction, and ideal mixing of material.Concrete Mixer With Hydraulic Hopper Model No. 675B.

Technical Specification

Model No. PI 675 B
Capacity Unmixed : 10 Cft. Mixed: 7 Cft.
Prime Mover 10 Hp Diesel Engine/ Electric Motor
Lift And Bucket Made Of 3.5mm Heavy Sheet
Drum Speed 18/20 Rpm
Wheels  Pneumatic Tyre With Steel Hub & Bearing System, And Pressed Steel Plate Rims â€" 4 No’s
Handi Yoke 100 X 50 X 5 Mm C Section M.S. Channel,  Bearing System
Chassis Heavy Duty M.S. 125 X 65 X 6 Mm Channel Chassis
Drive V-Belt (Branded Isi Mark C Section)
Mixing Drum Heavy Duty  M.S. 12 Mm Plate  Lower Drum, 4  Mm  Upper
Mixing Blade M.S. Blades For Efficient Mixing
Drum Type Tilting
Engine Cabin 16 G (1.6 Mm) Thick
Weight 2300 Kg Approx.
Hopper Lifting Hydraulic Operated
Lift Operation Mechanical Type
